Core Diagrams

The architecture overview diagram is defined according to C4 model by the following viewpoints :

The Level 1: A System Context diagram provides a starting point, showing how the software system in scope fits into the world around it;
The Level 2: A Container diagram zooms into the software system in scope, showing the high-level technical building blocks;
The Level 3: A Component diagram zooms into an individual container, showing the components inside it;
The Level 4: A code (e.g. UML class) diagram can be used to zoom into an individual component, showing how that component is implemented.

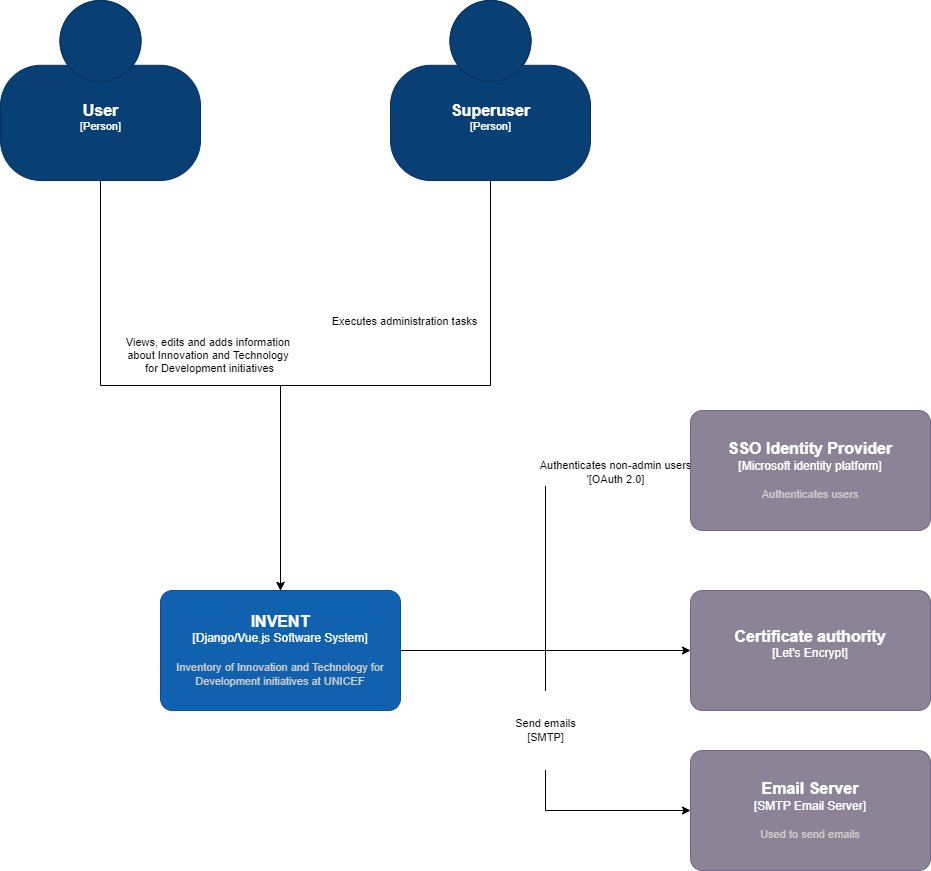

System Context diagram

The System Context Diagram shows the system context of the INVENT system. A system context diagram defines the boundary between the system or part of a system, and its environment, showing the actors and system entities that interact with it. The yellow parts show the actors and roles that interact with the system. The grey parts are external systems which the INVENT System shall interact with and are not described in the following sections.

External Interfaces

External Interfaces
Source	Target	Protocol / Standard	Description
User	INVENT	HTTP	A user can navigate to INVENT application using a browser to view and add information about Innovation and Technology for Development initiatives
Superuser	INVENT	HTTP	A superuser can have additional access to INVENT administration system and execute administration tasks
SSO identify Provider	INVENT	OAuth 2.0	Used to authenticate users
Certificate Authority	INVENT	ACME	Let’s encrypt is used as Certification Authority that provides certificates for TLS encryption
Email Server	INVENT	SMTP	Used to send emails

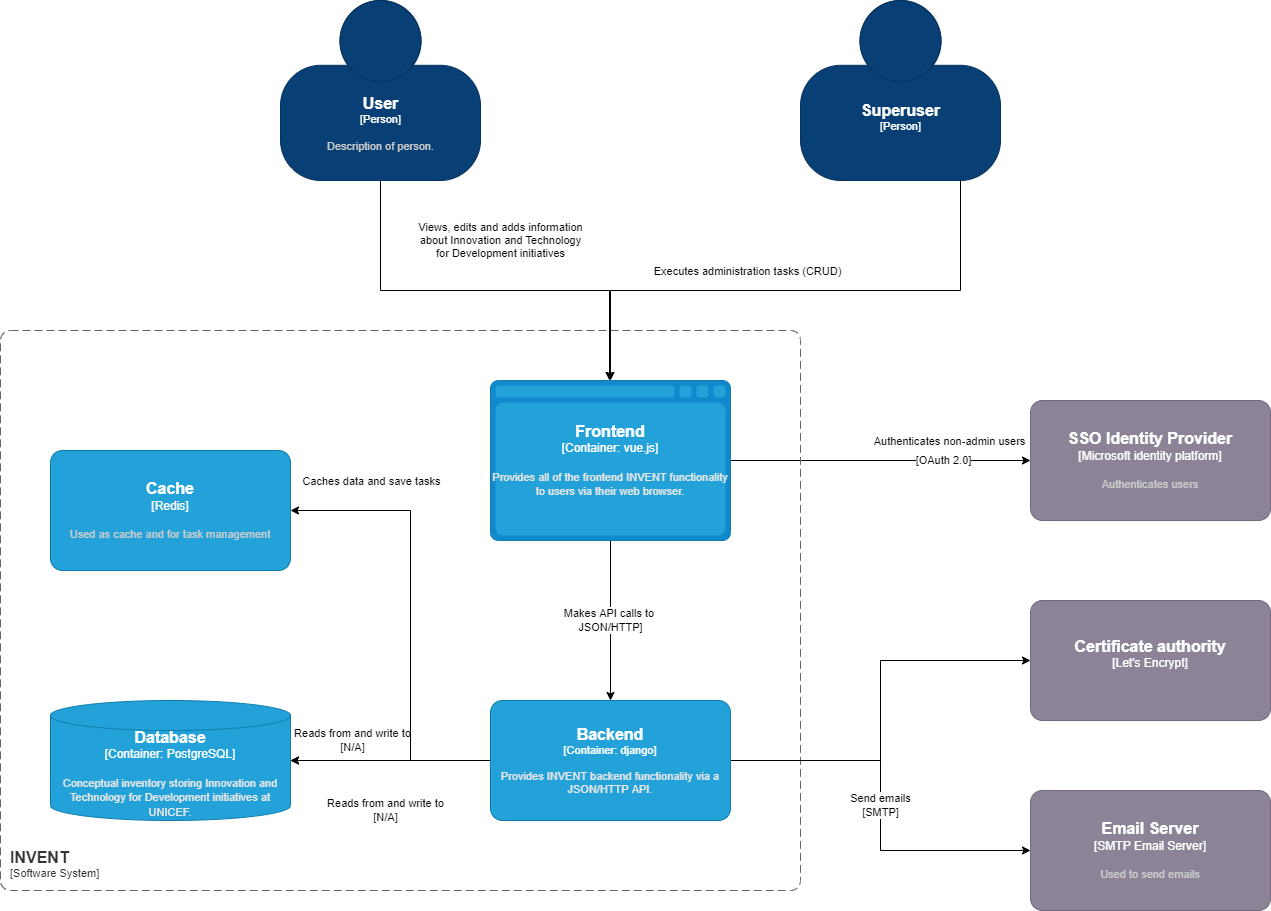

Container diagram for INVENT System

The following Container diagram zooms into the internals of the INVENT System, showing the high-level technical building blocks:

Internal Interfaces

Internal Interfaces
Source	Target	Protocol / Standard	Description
User	INVENT	HTTP	A user can navigate to INVENT application using a browser to view and add information about Innovation and Technology for Development initiatives
Frontend	Backend/Django	JSON/HTTP API calls	Frontend uses django api to fetch and save all the information for INVENT application. The API can be accessed as pOAS](http://localhost/api/docs/) or Redoc.
Backend/Django	Database/PostgreSQL	TCP Unix socket creation	Backend executes queries to read / from and write to DB
Backend/Django	Cache	TCP Unix socket creation	Cache storee scheduled tasks that send email notifications

External Interfaces

External Interfaces
Source	Target	Protocol / Standard	Description
User	Frontend	HTTP	A user can login to INVENT application to add, edit or view the content about Innovation and Technology for Development initiatives
Superuser	Frontend	HTTP	Superuser executes administration tasks, apart from INVENT application as a user
Backend/Django	Email Server	SMTP	Backend communicates with the email server responsible for sending emails.
Frontend	SSO Identity Provider	OAuth 2.0	Used to authenticate users

Component Diagrams

Backend Component diagram

Django Applications

Django Applications
Django Application	Description
core	Provides general staff for the application
country	Provides the countries related functionality
project	Provides the basic INVENT functionality for Initiatives handling
scheduler	Provides the schedule of email sending
search	INVENT search engine
user	Provides the functionality for user profile creation and user actions

Internal Interfaces

Backend Internal Interfaces
Source	Target	Protocol / Standard	Description
project	Database	TCP Unix socket / port 5432	Accesses PostgreSQL DB using the engine django.db.backends.postgresql_psycopg2. Queries to add/delete/modify projects in INVENT.
search	Database	TCP unix socket / port 5432	Accesses PostgreSQL DB using the engine django.db.backends.postgresql_psycopg2. Queries for search execution in INVENT.
user	Database	TCP unix socket / port 5432	Accesses PostgreSQL DB using the engine django.db.backends.postgresql_psycopg2. Queries to add/delete/modify user profiles in INVENT.
country	Database	TCP unix socket / port 5432	Accesses PostgreSQL DB.Queries to add/delete/modify countries in INVENT.
scheduler	Cache	TAccessed with Celery / port 6379	Redis used as message broker. Connection string configured with BROKER_URL in django/tiip/settings.py

External Interfaces

Backend External Interfaces
Source	Target	Protocol / Standard	Description
User	MS Id Platform	OAuth 2.0	Used for the user authentication
nginx	letsencrypt	ACME	Certification Authority to enable HTTPS. Certbot is a free, open source software tool for automatically using Let’s Encrypt certificates to enable HTTPS
core	Email Server	SMTP	Used to send emails. Configuration found in django/tiip/settings.py

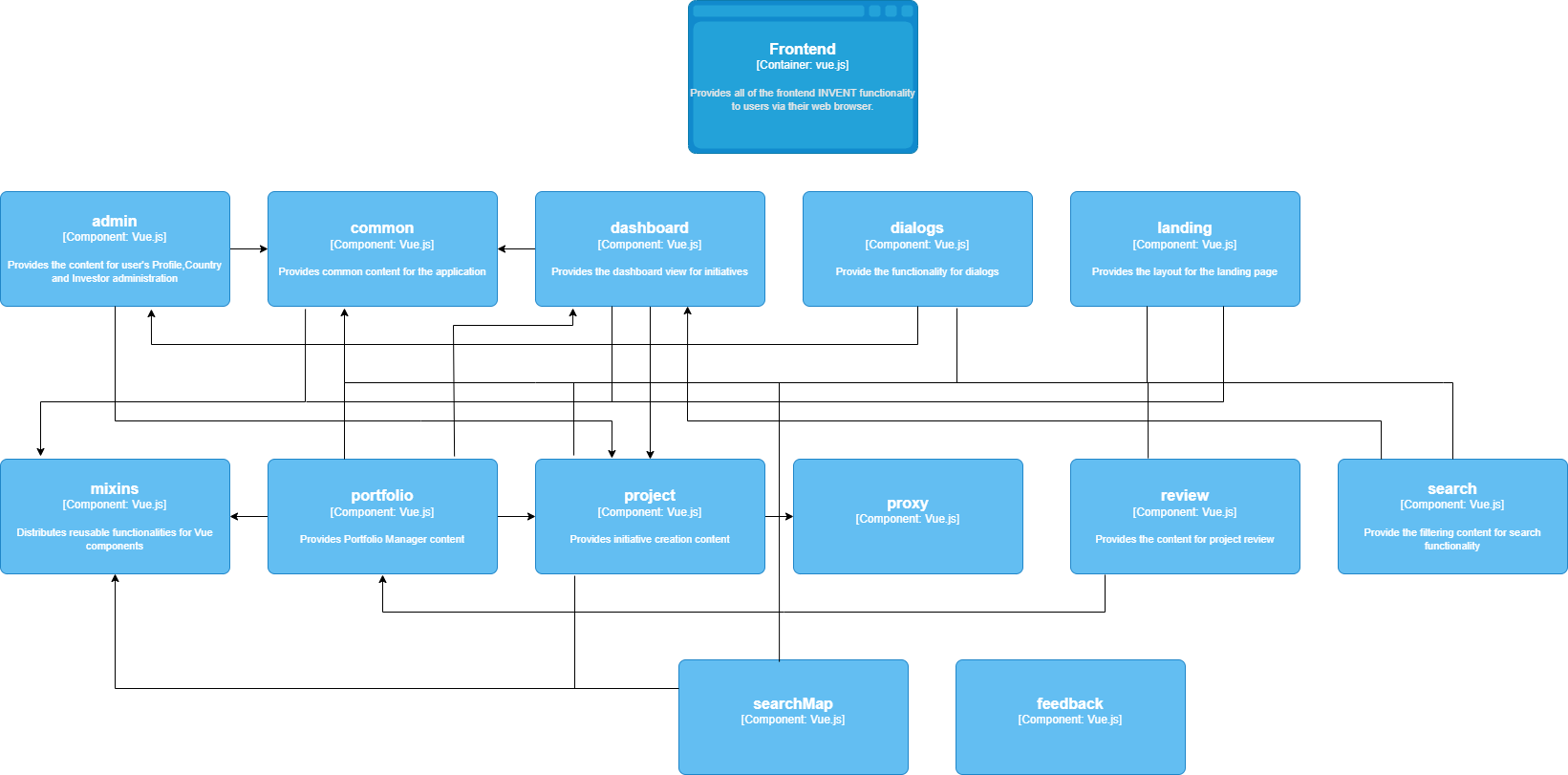

Frontned Component diagram

Modules

Vue.js modules are configured in frontend/package.json and can be modules required during development (devDependencies) or modules which are required at runtime (dependencies).

Development dependencies

To add a dependency as a devDependency execute the following:

npm install --save-dev

Runtime dependencies

To add a dependency as dependency execute the following:

npm install --save.

Scripts

The following scripts are supported (configured in frontend/package.json):

Frontend Scripts
Command	Description
yarn build	Build and optimize the application with webpack for production
yarn start	Start the production server
yarn dev	The basic command sto start the frontend. Starts nuxt with paratemeters “NODE_OPTIONS=’–max-old-space-size=4096’ HOST=0.0.0.0 nuxt”
yarn dev:win	Launch the development server
yarn analyze	Nuxt use webpack-bundle-analyzer to let bundles visualization
yarn generate	Build the application (if needed), generate every route as a HTML file and statically export to dist/ directory (used for static hosting).
yarn lint	Runs ESLint, a tool for identifying and reporting on patterns found in ECMAScript/JavaScript code. It executes the command “eslint –fix –ext .js,.vue –ignore-path .gitignore .”
yarn precommit	Runs lint
yarn precommit:fix	Runs lint with ‘–fix’ parameter
yarn test	Runs jest
yarn test:w	Runs jest –watch
yarn translation:extract	Runs a bash command “bash gettext.sh” to scrape the code and extract translation

Database Component diagram

For the DB physical data model, see Supplementary Diagrams.
