Supplementary Diagrams

Physical Data Model (PDM)

The DB PDM is presented in the following image:

DB PDM

The following sections zoome into the PDM of each Django application.

Core

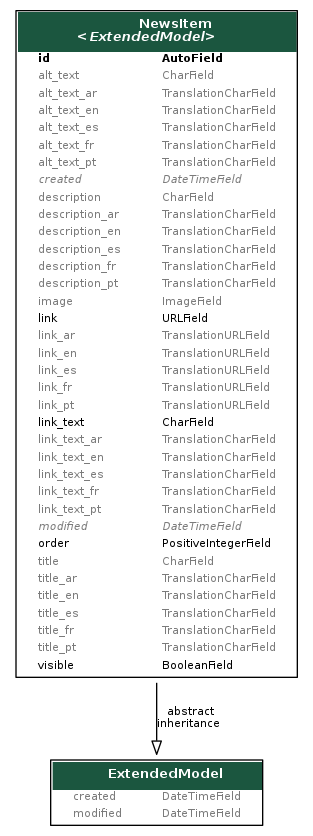

DB PDM

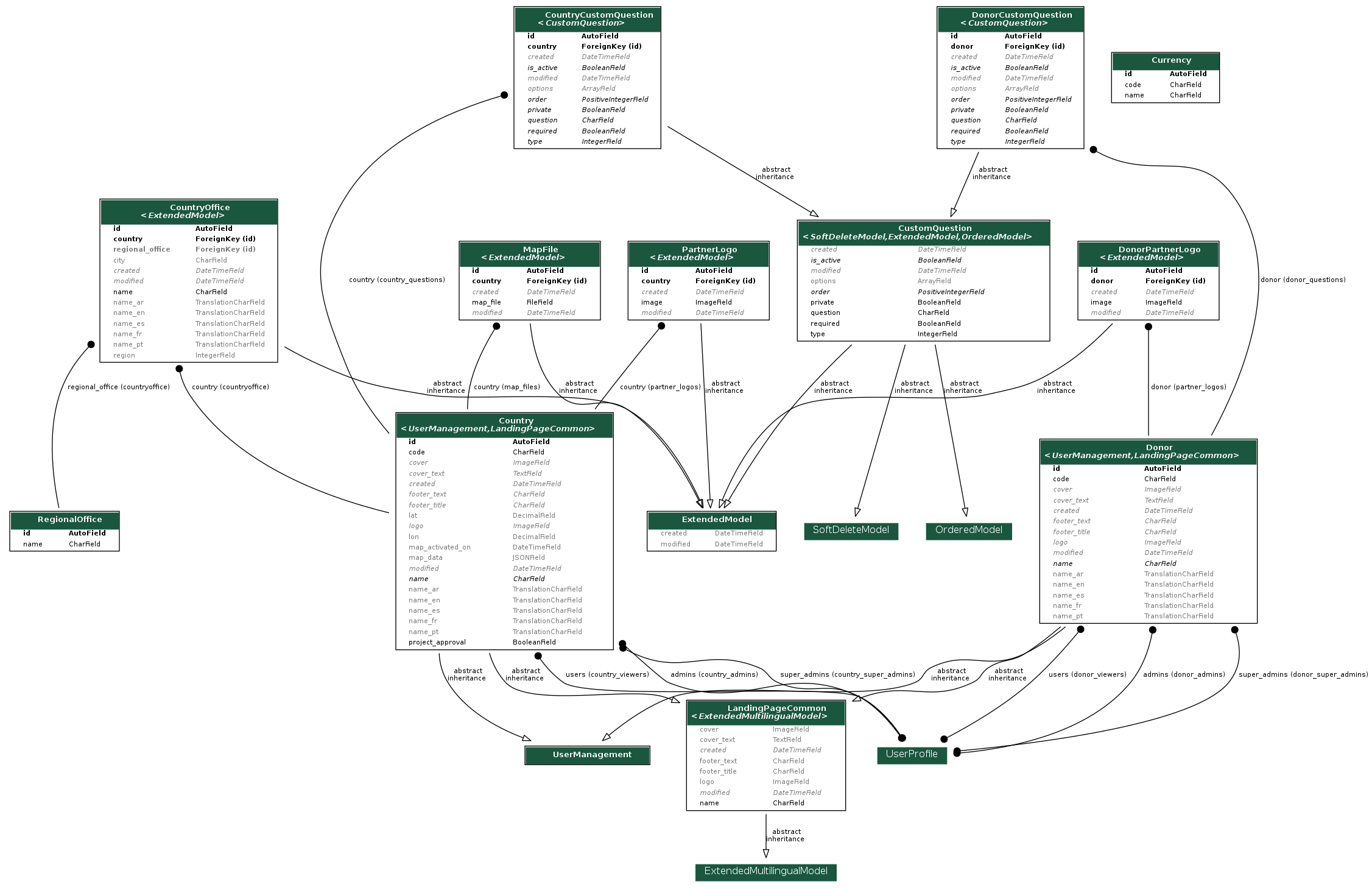

Country

DB PDM

Project

DB PDM

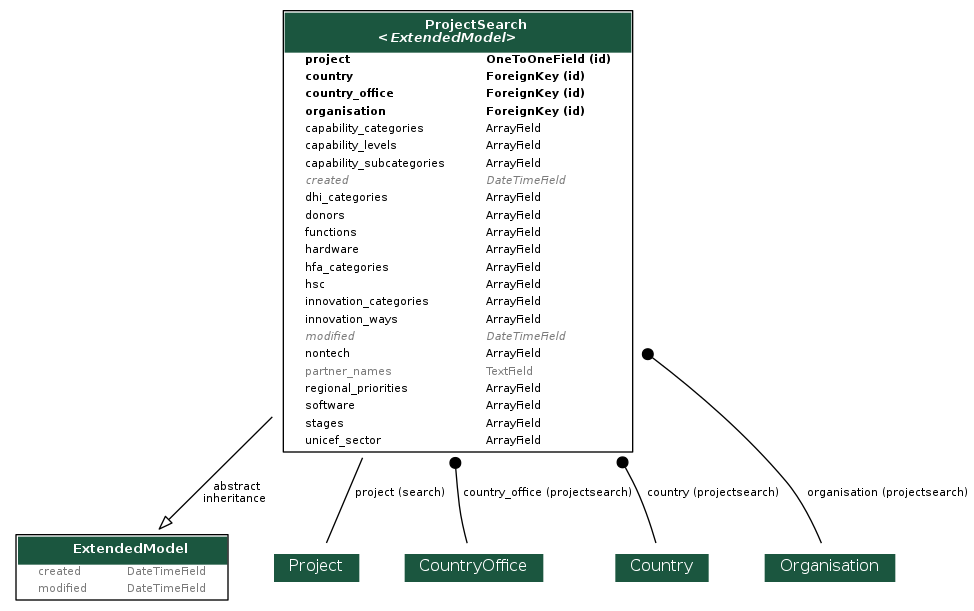

Search

DB PDM

User

DB PDM

Note: How to export database schema

Pygraphviz is a Python interface to the Graphviz graph layout and visualization package and is required to draw graphs of the physical data model. This can be added under django/requirements.txt and be installed while executing docker-compose build.

cd <GIT_REPOSITORY_NAME>/django

Add the following line in requirements.txt file

pygraphviz==1.7

Then execute:

cd <GIT_REPOSITORY_NAME>
docker-compose build
docker-compose up

Pygraphviz needs graphviz software to run. In the terminal execute the following to find the tiip-django container id.

docker ps -a

Then use the following command to start an interactive shell inside django docker container. This will run the bash shell in the specified container, giving a basic shell prompt. To exit back out of the container, type ‘exit’ and then press ENTER:

docker exec -it <CONTAINER_ID> bash

While in the container install the software by executing:

apt-get install graphviz

Open a new terminal and run

docker-compose exec django python manage.py graph_models app -o image_filename.png

Where:

• app: the django application to export the DB schema, eg user or project etc

• image_filename.png: a filename to store the output png file of database

To get the schema of more than one application and the relationship between them execute the following:

docker-compose exec django python manage.py graph_models app1 app2 app3 -o image_filename.png
