Installation Manual

Environment Prerequisites

Before the installation make sure that the DEV-local environment has properly installed and configure the following pre-requisites (instructions how to install are not provided):

Environment Prerequisites

Prerequisite

Version

Description

OS

Linux (tested with Ubuntu 21.04), Mac and Windows supported

OS of the DEV-local environment

Python

3.x (tested 3.7.11)

Python should be installed in the DEV-local environment; e.g. to execute manage.py

npm

7.5.x (tested with 7.5.2)

Package manager for Javascript, used to install yarn

yarn

1.22.x (tested with 1.22.17)

Package manager for code, recommended to install through npm package manager, which comes bundled with Node.js. Used to deploy the frontend application

docker

20.x (tested with 20.17)

Software platform to create, manage and run applications. Backend applications are containerized.

docker-compose

1.29.x (tested with 1.29.2)

Tool to define and run the multi-container Docker applications.

Web Browser

Chrome, Firefox, Safari or Edge latest versions

Used to access the SPA
system-context-diagram

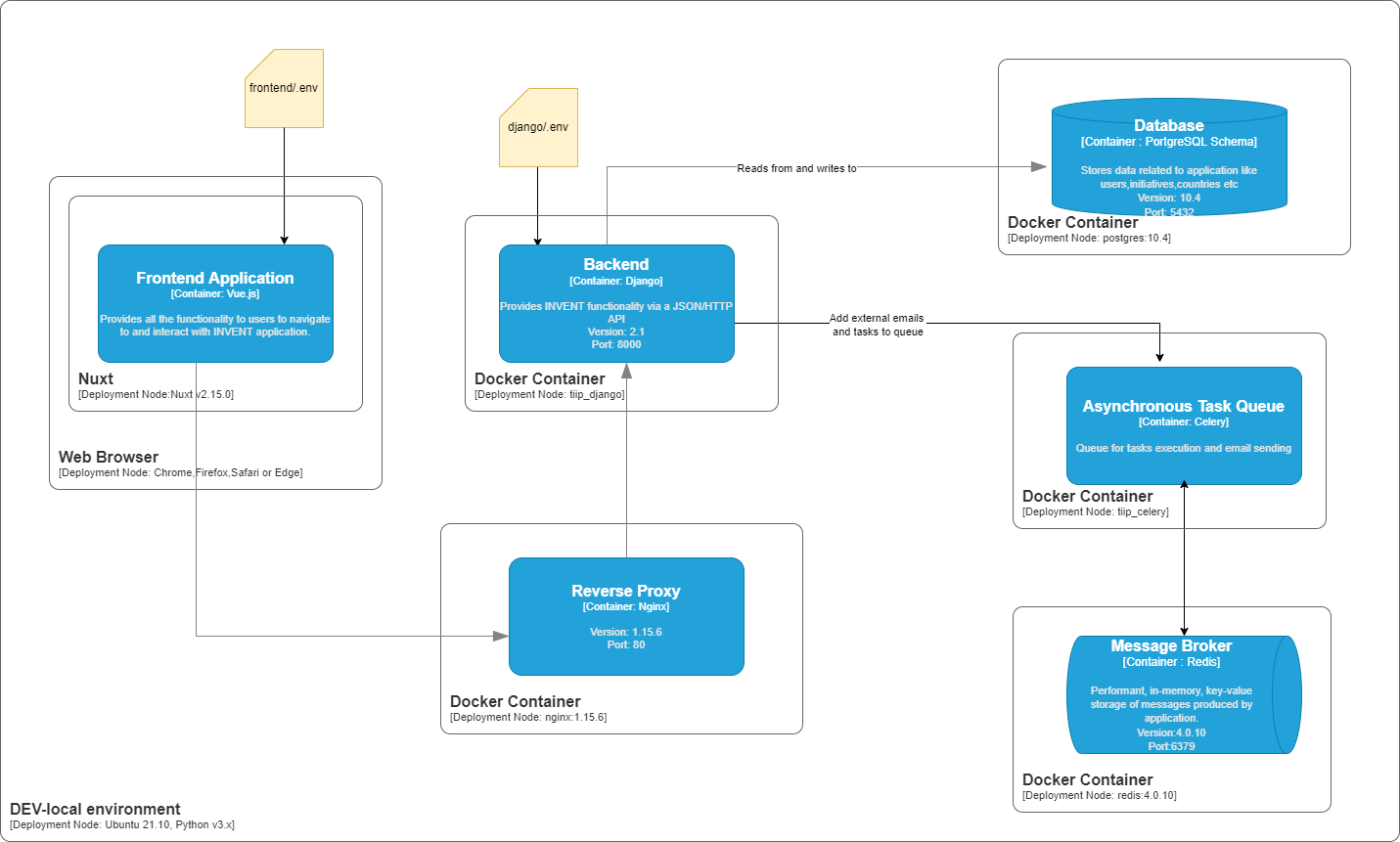

Deployment Diagram

Clone repository

git clone <GIT_REPOSITORY_URL>
cd <GIT_REPOSITORY_NAME>

Configure

Copy <GIT_REPOSITORY_NAME>/django/.env.template to <GIT_REPOSITORY_NAME>/django/.env and provide the appropriate values (required in django/tiip/settings.py):

SECRET_KEY=<a random generated long alphabetic string eg dskgsjgssosdsfhaplfnfbkjnndbff>
DEBUG=False
PROJECT_NAME=
DEFAULT_FROM_EMAIL=
REDIS_URL=redis
AZURE_CLIENT_ID=
AZURE_SECRET=
AZURE_TENANT=
AZURE_CALLBACK_URL=
SENTRY_DSN=
EMAIL_SENDING_PRODUCTION=False
SIMPLE_FEEDBACK_SEND_TO=
API_MAINTAINER=
EMAIL_VALIDATOR_REGEX=
ENABLE_API_REGISTRATION=True
DEPLOY_VERSION=

Where:

Backend .env contents description

Key

Optional/Mandatory

Description

SECRET_KEY

Mandatory

A secret key for a particular Django installation. It provides cryptographic signing and it should be set to a unique, unpredictable value.

DEBUG

Mandatory

A boolean that turns on/off debug mode

PROJECT_NAME

Mandatory

Project name string, can include spaces

REDIS_URL

Mandatory

Redis URL string

AZURE_CLIENT_ID

Optional

The client(application) ID of an App Registration in the tenant.

AZURE_SECRET

Optional

A client secret that was generated for the App Registration.

AZURE_TENANT

Optional

The Azure Active Directory tenant(directory) ID.

AZURE_CALLBACK_URL

Optional

Azure login redirect URI

SENTRY_DSN

Optional

DSN if you want to capture errors on Sentry Sentry

EMAIL_SENDING_PRODUCTION

Optional

A boolean that turns on/off email sending through SMTP (False by default)

SIMPLE_FEEDBACK_SEND_TO

Mandatory

Email address of administration who should get the Feedback module questions (Help(?) button on UI)

API_MAINTAINER

Mandatory

Email address of the API maintainer visible on /api/docs

EMAIL_VALIDATOR_REGEX

Optional

Regex that is used to limit email addresses that can be added as a team, viewer for an initiative

ENABLE_API_REGISTRATION

Optional

Signups can be disabled through the API eg. in production to only use SSO not the internal API (True by default)

DEPLOY_VERSION

Optional

Version number of the software deployed. Eg 1.0.0. Will be used on Django Admin header bar and on Seentry.

Copy <GIT_REPOSITORY_NAME>/frontend/.env.template to <GIT_REPOSITORY_NAME>/frontend/.env and provide the appropriate values:

HOST=localhost
PORT=3000
AZURE_CLIENT_ID=
AZURE_REDIRECT_URI=
AZURE_TENANT=

Where:

Frontend .env contents description

Key

Optional/Mandatory

Description

HOST

Mandatory

The host url for frontend.

PORT

Mandatory

The port that frontend is loaded.

AZURE_CLIENT_ID

Optional

The client(application) ID of an App Registration in the tenant.

AZURE_REDIRECT_URI

Optional

The redirect_uri of the application, where authentication responses can be sent and received.

AZURE_TENANT

Optional

The Azure Active Directory tenant(directory) ID.

Configure database connection in django/tiip/settings.py: here:

Backend .env contents description

Location

Description

Example

DATABASES.default.ΝΑΜΕ

Schema name

postgres

DATABASES.default.USER

Username

postgres

DATABASES.default.HOST

Hostname

localhost

DATABASES.default.PORT

Port

5432

Warning

This configuration assumes that PostgreSQL trusts connections from localhost else a password is required.

Configure emails:

Backend .env contents description

Location

Description

Example

DEFAULT_FROM_EMAIL

Used in send_mail methods to define the sender (FROM

UNICEF T4D & Innovation Inventory Portal noreply@invent.unicef.org

Build

Change directory to the project’s root folder.

cd <GIT_REPOSITORY_NAME>

Build containers:

docker-compose build

This command will use the default docker-compose.yml file

Important

Code changes are applied immediately in backend without the need to restart django.

Deploy backend

Start containers

Change directory to the project’s root folder.

cd <GIT_REPOSITORY_NAME>

Start containers:

docker-compose up

This will load configuration from the file docker-compose.yml and load the following containers:

Docker Images


Description

nginx:1.15.6

Downloads docker image of nginx from Docker Hub and creates tiip_nginx container

postgres:10.4

Downloads docker image of postgres from Docker Hub and creates tiip_postgres container. Set environment for postgresql environment: {POSTGRESQL_DB=postgres, POSTGRESQL_USER=postgres, POSTRESQL_PASSWORD= postgres}

redis:4.0.10

Downloads docker image of Redis from Docker Hub and creates tiip_redis container

django

Creates tiip_django container and starts the django application with the command /usr/local/bin/gunicorn tiip.wsgi:application -w 2 -b :8000 --reload --timeout 120

redis

Creates tiip_celery container and starts celery with the command /usr/local/bin/celery -A scheduler worker -B -l info

Create DB

Change directory to the project’s root folder.

cd <GIT_REPOSITORY_NAME>

Execute the following command to create the DB schema:

docker-compose exec django python manage.py migrate --noinput

Deploy frontend

Change directory to the project’s root folder.

cd <GIT_REPOSITORY_NAME>/frontend

Execute the following to add the dependencies from frontend/package.json file and create node_modules folder:

yarn install

Execute the following to start the frontend server:

yarn dev

Create superuser (at least one is required)

Change directory to the project’s root folder.

cd <GIT_REPOSITORY_NAME>

Execute the following to create a superuser:

docker-compose exec django python manage.py createsuperuser

Provide the required information, username, email and password.

A superuser can create more superusers as described in Administration Manual.

Validate successful installation

Login as superuser

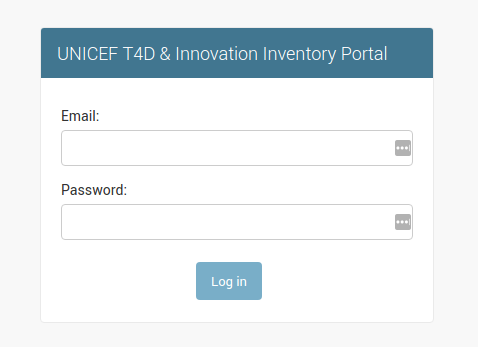

Visit with the browser the URL http://localhost/admin and login:

system-context-diagram

Superuser Login Screen

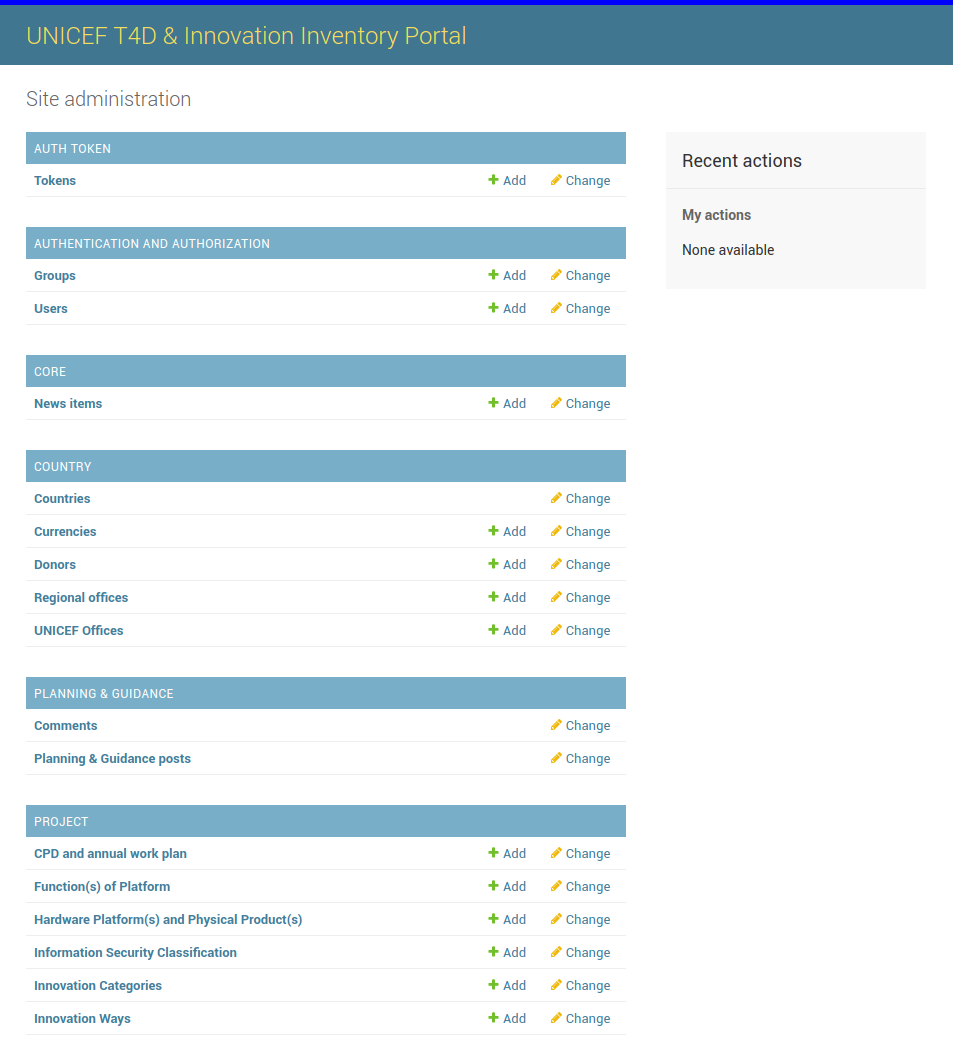

After a successful login the admin page is loaded:

system-context-diagram

Superuser Homepage Screen

Login as user (local authentication)

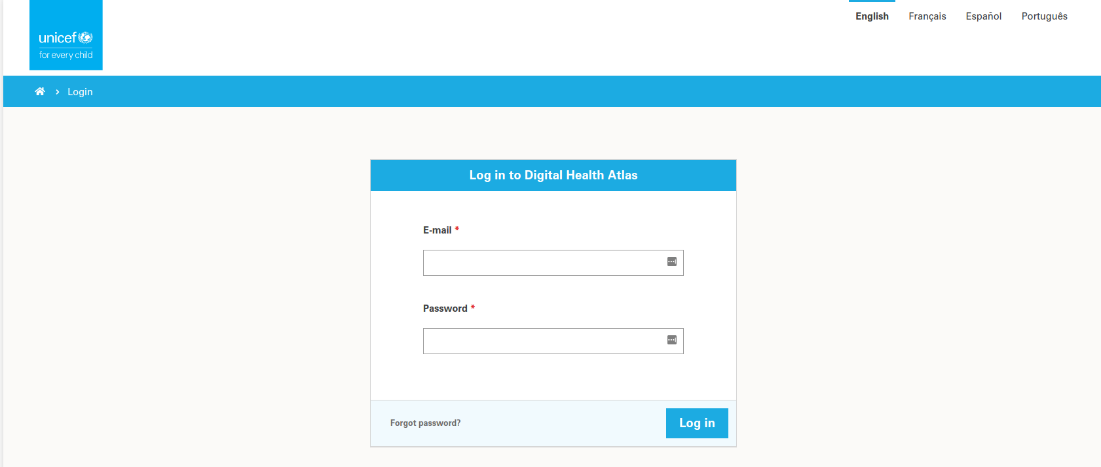

Navigate to http://localhost:3000/en/-/login and enter the user’s credentials to login:

system-context-diagram

User Login Screen

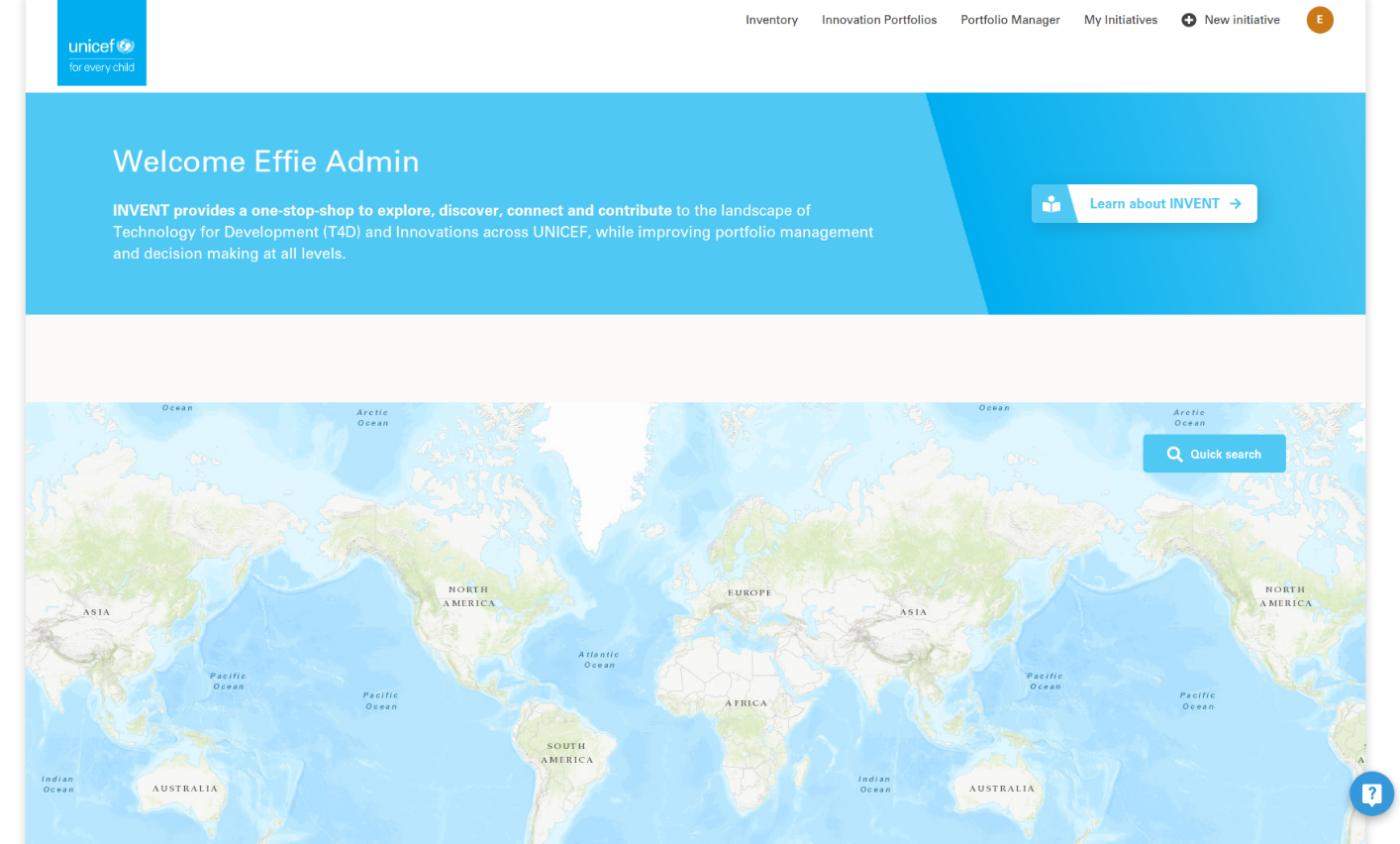

After a successful login the user is redirected to INVENTORY dashboard by clicking on “unicef” icon on the top left corner the home page is loaded.

system-context-diagram

UserHomepage Screen

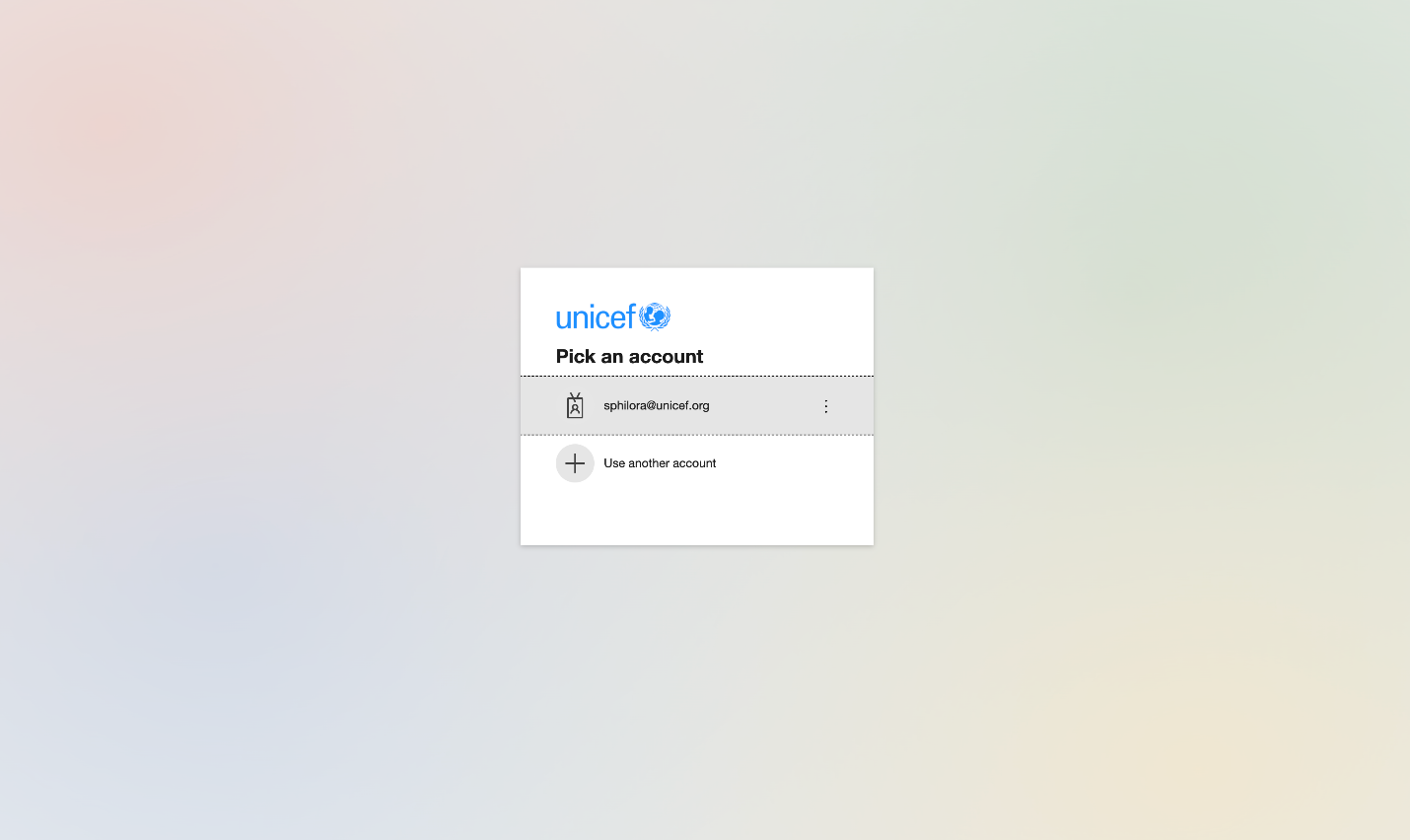

Login as user (Azure Single Sign-On)

system-context-diagram

Superuser Login Screen

system-context-diagram

Superuser Login Screen 2
